EtherSens ProSuite - TINA - MONI - S5-Interface 05/2025


Show in browser


Merry Christmas and a Happy New Year!
Enjoy the holidays and start a successful 2026
with full energy

Your PI-Info-Team
image_logo
 (our shipping-department will be closed from December 22, 2025 to January 6, 2026 inclusive)


for your PLC-components we have following
News / Innovations:
EtherSens ProSuite
- communication with S5/S7/Bosch controllers, Modbus RS485...
  (further controls available upon request)
- optional color touchscreen
- Universal I/O-modules for a wide variety of applications:
  • SMART-Relais-module:
    • recording of
      • Current [max. 30A AC/DC]
      • Voltage [0 - 300V AC/DC (RMS)]
      • cos phi (power factor)
      • energy consumption kWh (active/apparent/reactive power)
    • controllable relay [max. 30A AC/DC] for current OFF/ON
  • MESSI-module (ideal for use as a 4G fault reporter):
    - Send fault notifications as SMS/email depending on the set inception time
    - Send status messages and (operational) states via SMS/email
    - Features:
    • 4 Digital_In (common ground, max 24V DC)
    • 5x Digital_Out (common supply, max 80V)
    • 4x Analog_In (0..30V, 0/4..20mA, differential) [16 bit]
  • OSC-module:
    • In conjunction with a zirconium dioxide O2 probe, it functions as an O2 analyzer.:
      oxygen value range: 10-24 over ppm up to 100%
      (automatic range switching)

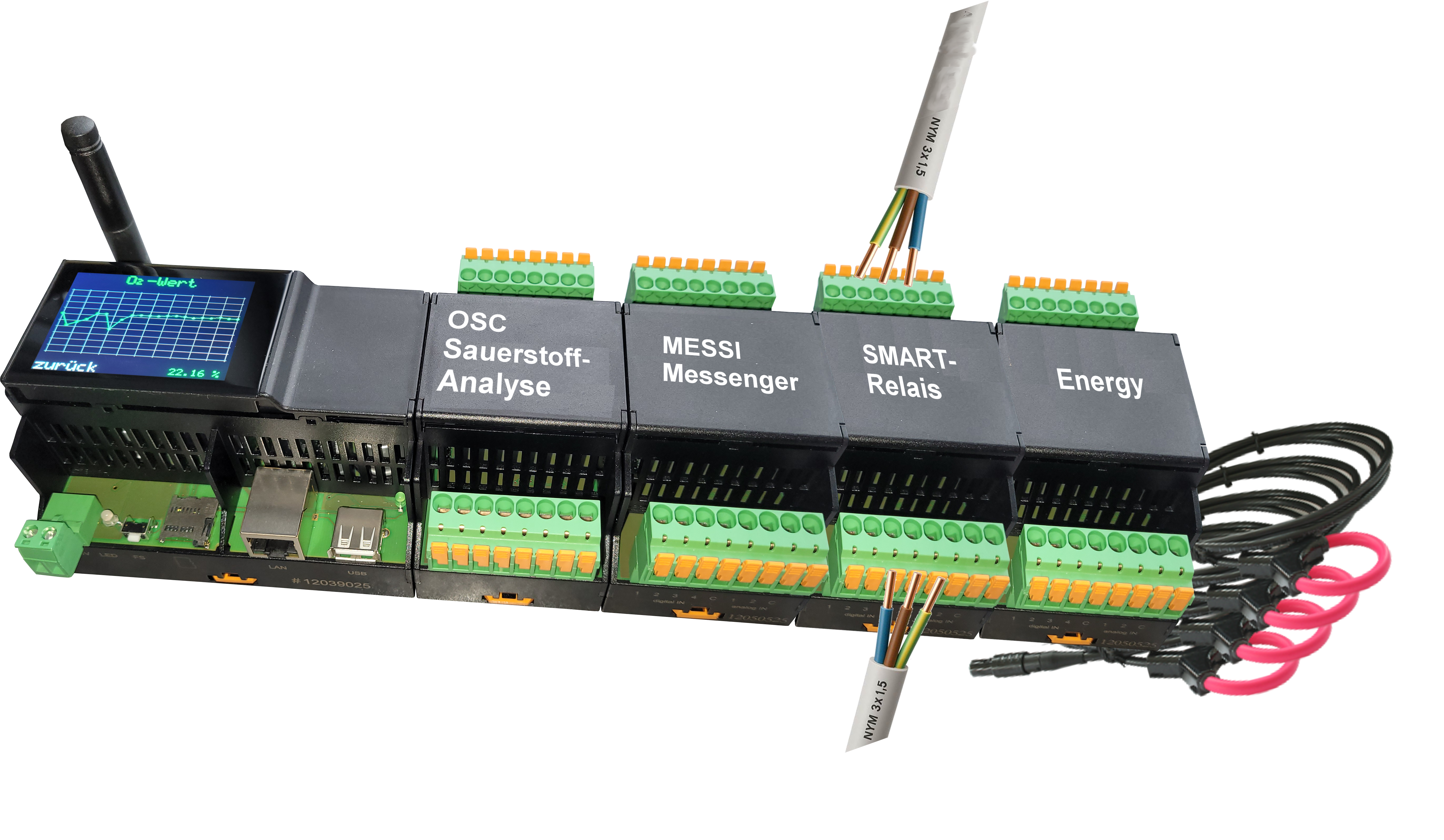

EtsProSuite SMART Relais
EtherSens ProSuite
(further information => click on picture)

TINA - Tragbarer (portable) Intelligenter (smart) Netzwerk- (network) Analyser (analyser)
Are you experiencing recurring, unexplained phenomena in your network or Profinet system? Do users appear briefly and then disappear for extended periods? Do users vanish or new, unknown users appear?

TINA stands for:
  • Non-reactive recording of Ethernet communication
  • Simply plug the device into the network cable, no special and expensive
    hub/switch is required
  • Recording to a Wireshark-compatible file, therefore viewable at any time with Wireshark
  • Complete operation (display and parameterization) via web server over WLAN
Our solution for all these requirements:
S5-LAN++
TINA - portable smart network analyser
(further information => click on picture)

MONI - mobile net-analyzer
Energy values ??can be recorded and logged using Rogowski coils (accessories)
Operation and control via integrated web server (also with mobile phone/tablet)

Features:
  • Determining energy efficiency [up to 8000 measurements / second]
  • Energy analysis (EN 50470-1 EN 50470-3)
  • L1, L2, L3, N real-time analysis
  • Voltage 100-500V AC
  • Current 0,1-5000A (Push-Pull-connector)
  • Hz / cos phi / power factor
  • Energy consumption kWh
  • Operation/Configuration of web browser via LAN / WLAN
  • Supply:
    • 100-240V 50-60Hz (from L1)
    • 24VDC (over plugable connector)
    • USB (from PC/PowerPack)
  • Data transmission via TCP/IP to a DB in an S7-PLC
  • WIFI operating modes:
    • Access-Point (opens its own network)
    • Client (connects to existing networks)
  • Data storage microSD / FTP-server / USB-stick
S5-LAN++
MONI - mobiler Netzanalyser
(further information => click on picture)

Interface-cables for S5
Connection cable from your PC/PG to the S5 with the S5-typical sliding lock
Custom configurations available upon request (a description and configuration of the interface are required)
  • USB
  • network
  • WIFI
  • and also RS-232
S5-LAN++
S5-Interfaces
(further information => click on picture)


New firmware/software version(s):
  • CONNECT V1.17:
    - All parameters and status of the CONNECT devices can be read via
      database access via S7-TCPIP RFC1006
    - WIFI leases can now be extended with logical names.
    - Special character validation integrated into input fields
  • TINA/TINA II V1.11:
    - Fixed a problem with the use of the special characters \ " ' & < > on the
      configuration page
    - The DHCP server is now forwarding the configured gateway and DNS server
      to clients
    - Fixed a problem with the WLAN access point when the WLAN client network
      was unreachable
    - Integrated WLAN interfaces for the 5GHz band for web access (TINA-II only)
    - Fixed a bug that caused the WLAN access point to be unreachable when
      there was no connection to the client network
    - Settings can now be backed up and restored
    - Integrated support for WPA3 and WPA Enterprise
    - Address range for DHCP server is now configurable
    - Displaying the device name in the browser's title bar
    - Integrated analysis of the S7 protocol for read/write access to variables
    - Improved validation of numeric configuration fields
    - The device or product name is now used as the hostname
    - Fixed error in generated support file
    - Display error on the login page fixed
  • S5-BRIDGE / S7-BRIDGE V1.10:
    - Fixed a problem with the use of the special characters \ " ' & < > on the
      configuration page
    - The DHCP server is now forwarding the configured gateway and DNS server
      to clients
    - Settings can now be backed up and restored
    - Integrated support for WPA3 and WPA Enterprise
    - Address range for DHCP server is now configurable
    - The WLAN part of the S7 bridge can now be accessed via the TIC
    - Displaying the device name in the browser's title bar


Aroused interest?
write us: verkauf@process-informatik.de
